Lawn Sprinkler Installation · Calgary, AB
Lawn Sprinkler Installation in Calgary, AB
In Calgary, AN Irrigation Co Sprinkler Systems designs and installs in-ground lawn sprinkler systems built for clay soil, a five-month season, and a watering bylaw that decides which days your zones can run. We map the yard, zone it for even head-to-head coverage, and program the controller before we leave, so the lawn stays green without you dragging a hose or tracking the schedule.
- Fully Insured
- Available 24/7
- Upfront Written Pricing
- Locally Owned in Calgary
- Free On-Site Estimates
Fast & Free
Get Your Free Estimate Today
AN Irrigation Co Sprinkler Systems installs in-ground lawn sprinkler systems across Calgary, from established inner-city yards to new builds in Mahogany, Seton, and Livingston. A residential system averages $4,000, takes one to two days, and includes zoning, backflow protection, and a controller programmed to Calgary's three-day watering bylaw. Estimates are free and written.
- Lawn Sprinkler Installation: Average Cost $4,000
- Serving: Calgary, AB
- Estimates: free, written, and itemized before any work starts
Upfront, written pricing. Your exact number is confirmed on a free on-site assessment before any work starts.
Get My Free EstimateLocal Conditions
What Lawn Sprinkler Installation in Calgary Has to Account For
- Most Calgary yards sit on clay that drinks slowly, so a new system runs short cycles with soak breaks rather than one long pass, or the water sheets into the gutter.
- The city's watering bylaw allows sprinklers three days a week, before 10 a.m. or after 7 p.m., split by even and odd addresses, so the controller has to be programmed to your address from day one.
- New communities like Mahogany, Seton, and Livingston are a thin lift of builder topsoil over machine-compacted clay, which changes head spacing and run times on install day.
- Winter frost drives deeper than any lateral line is buried, so every system we install is plumbed to blow out cleanly each fall.
- Chinooks push temperatures above and below freezing all winter, so fittings go in where they can be drained and the backflow assembly stays easy to protect.
Lawn Sprinkler Installation in Calgary, Done Right
Real project photos from our own crews across the Calgary area, backed by upfront written pricing and a straight, repair-first answer.
Designing a Calgary Install for Clay and a Short Season
Calgary gives a lawn about five months to do all its growing, and a good stretch of that is genuinely dry. A system built for this city has to put down a deep, even soak in the cool hours and then stay out of the way, which starts with how the zones are drawn. We measure the actual water pressure and flow at your house first, because those two numbers cap how many heads one zone can feed before every head starts under-spraying.
The clay under most Calgary lawns is the second design driver. It absorbs water slowly, so a zone set to run twenty minutes straight loses the back half of that time to runoff heading for the sidewalk. We program cycle-and-soak instead: shorter bursts repeated with rest between them, so each pass has time to sink in. Matched-precipitation nozzles keep every head in a zone laying down water at the same rate, which is what stops the dry-ring-and-puddle pattern before it starts.
Garden beds come off the lawn zones and go on their own drip lines, where slow water at the roots suits Calgary's clay far better than spray that mostly evaporates. Before we call an install done, we run every zone with you standing on the lawn watching the arcs meet, because head-to-head coverage is the difference between a system that works and one that leaves pale crescents by August.
Programming a New System to Calgary's Watering Bylaw
Calgary runs a year-round outdoor watering bylaw, and a new system has to live inside it from the first cycle. Sprinklers are allowed three days a week, before 10 a.m. or after 7 p.m., with even and odd addresses assigned different days. We program your controller to your address and those windows during the install, so the system is compliant the day we hand it over and you never get a letter about it.
There is a bigger water picture behind those rules. The city can layer drought stages on top of the base schedule when the Bow River or the Glenmore Reservoir runs low, tightening the days further. A system designed to waste nothing is the one that keeps a lawn alive through a restricted summer, which is why we lean on efficient nozzles, drip on the beds, and a controller that skips watering after rain.
We label every zone at the controller and set the schedule up so it is simple to adjust, whether the city moves to a tighter stage or you add a smart controller later. A change in the rules should be a two-minute job, not a guessing session at the garage wall.
Installing a Calgary System That Survives the Winter
Irrigation pipe in Calgary sits in the top foot of soil, and winter frost drives far deeper than that, so a system that is not emptied before freeze-up is a system waiting to crack. We install with that in mind. The backflow assembly, the most freeze-vulnerable part on the property, goes in where it can be drained and protected, and the mainline is plumbed so a fall blowout clears every zone.
Chinooks make the winter harder on a system here than the raw cold would. Between November and March the city can thaw and refreeze dozens of times, and every cycle pushes whatever water was left in a line a little further into a weak point. A line blown fully dry has nothing to expand, which is why we build the system to winterize cleanly and book the blowout the same fall we install.
The install itself is done with a vibratory plow that slits the turf instead of trenching it open, so an established Calgary lawn knits back together within a couple of weeks. Utility locates happen before the plow moves, every zone gets backflow protection ahead of the first valve, and the whole system is set up so the parts you will ever need to reach stay reachable.
Want a straight answer about your own yard? Call (587) 600-6451 or request a free written estimate.
How Our Crews Move Around Calgary
Our trucks are based in Calgary, and Deerfoot Trail is the spine of every route we run. It carries Highway 2 the full length of the city, so a morning install in the deep southeast and an afternoon repair up north is a normal day for us, not a scheduling headache.
Stoney Trail changed how we quote the edges of the city. The ring road circles Calgary completely now, so communities out near the perimeter in any quadrant are a straight run instead of forty minutes of surface streets. Glenmore Trail covers our east-west jobs through the south half, Crowchild Trail handles the northwest, Macleod Trail feeds the south-central communities, and 16 Avenue carries the Trans-Canada through the middle of the city when we are working the northern neighbourhoods.
We batch jobs by quadrant to keep drive time out of your bill. When you call, tell us which community you are in and we will slot you into a day the truck is already on your side of the city.
Good to Know
Lawn Sprinkler Installation in Calgary: Frequently Asked Questions
How much does a sprinkler system cost in Calgary?
Most residential Calgary systems land around $4,000, but the real number depends on lot size, zone count, and how many garden beds need their own drip line. We price the whole system after a free on-site assessment and give you a written, itemized estimate before any digging, so the figure you approve is the figure you pay.
Will a new system follow Calgary's watering rules on its own?
Yes. We program the controller to your address and the bylaw's three-day, before-10-a.m.-or-after-7-p.m. windows during the install. Add a smart controller and it also adjusts when the city moves to a tighter drought stage, so you stay compliant without touching it.
How long does installation take, and will it wreck my lawn?
Most Calgary lawns go in over one to two days. We use a vibratory plow that slits the turf rather than trenching it open, so disruption stays minimal and an established lawn recovers within a couple of weeks.
Do you install in new communities like Seton or Livingston?
Regularly. Those lots are a thin layer of topsoil over compacted clay, so we tighten head spacing and program cycle-and-soak run times to match. New builds also need the install coordinated with final grading, which we handle as part of the job.
Keep Exploring
More on Lawn Sprinkler Installation and Calgary
Lawn Sprinkler Installation
Custom in-ground sprinkler and irrigation systems designed for full, even coverage of your Calgary lawn and gardens.
Learn More →Irrigation in Calgary
Everything we do in Calgary, town-wide: services, local conditions, and access.
Learn More →Sprinkler System Repair in Calgary
Fast diagnosis and repair of broken heads, leaks, valve failures, wiring faults, and coverage problems.
Learn More →The same crews also cover lawn sprinkler installation in Chestermere and sprinkler system installation in Cochrane.

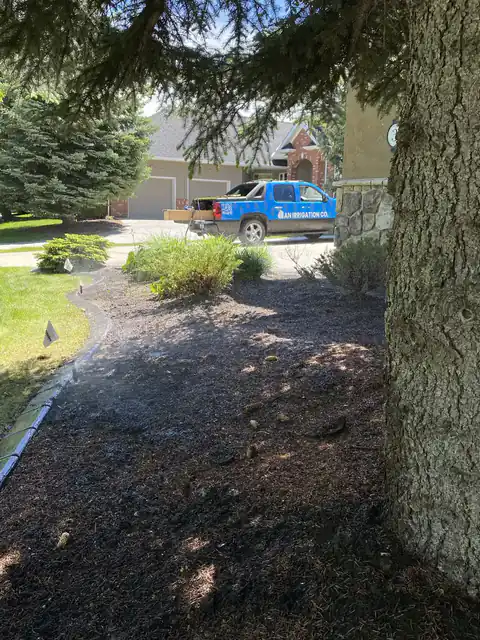

From Our Job Sites
